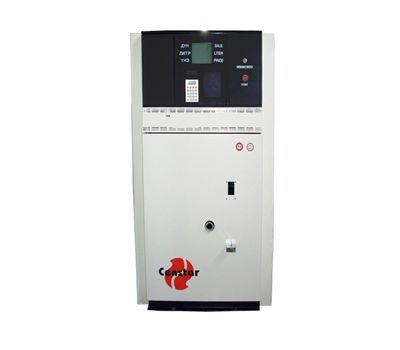

Ultra Heavy Duty Fuel Dispenser
filling station pump
This filling station pump is especially used for commercial fueling at oil depot or oil distribution site, for train、ship、heavy duty trucks、mining machinery etc. large machinery to dispense oil, diesel oil or water.
Products Configuration
Technical Parameters
Advantages
Options
Comments
| Technical Parameters: |
| Accuracy: | ±0.3% | | Flow rate range: | 45 to 450 liter per minute | | Display: |
| | Volume: | 0.00～99999.99 liter or gallon | | Price: | 0.00 to 99999 | | Sales: | 0.00～9999999 | | Decimal point position can be chosen by client | | Totalizer: | volume 0-42949672.95 liter or gallon | | Weight: | 0-42949672.95 kg | | Working environmental temperature: | -40oC to +55 oC | | Relative humidity: | ≤95% | | Working pressure: | ≤0.5Mpa | | Noise: | ≤72dB |
|

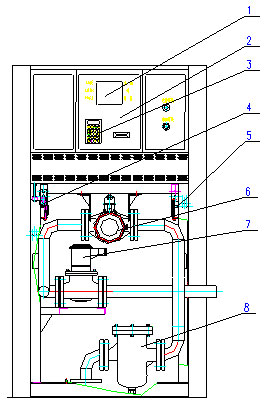

CS40TD111 Heavy Duty Fuel Dispenser | 1. LCD Display
2. Electric Head
3. Key pad
4. Explosion-proof wire junction box
5. Explosion-proof communication box
6. Flow Meter
7. Explosion-proof solenoid valve
8. Filter |

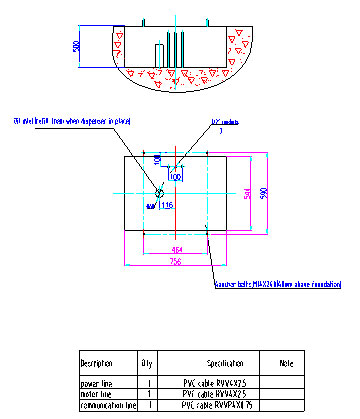

CS40TD111 Foundation |
1. Two flow meter, high flow rate meter and spare turbine meter as alternative one used in emergency.
2. Crane rotating pipe (option) and hose used for flexible refueling at different position and direction.
3. Specially designed nozzle holder made of steel pipe, for dropping liquid collection.
4. Rotating nozzle for convenient operation
5. Automatic heating device for the pipe system..
6. Dual flow rate control solenoid valve for accurate measuring.
7. Good accuracy, heavy duty, low noise.
8. Data safe , backup power able to keep the display on at least 15 minutes. Fueling data can be saved for long time
9. Matured computer control technology, easy and safe operation.
10. Automatic check function, reset to 0 automatically every time.
11. Preset function, preset volume or amount , preset by backstage system.
12. Stable and good performance. Separate Strong power and weak power system.
13. Large LCD display, with back lighting for night viewing
14. Strict processing and quality control, stable, liable and strong electromagnetic compatibility.
This petrol pump equipment, equipped with stable electrical components and accurate flow meter, ensure good performance, accuracy, and easy to be operated and maintained.
This heavy duty fuel dispenser is driven by a separate pumping unit nearby. The filling station pump unit should be equipped with 5KW~7.5KW motor, to ensure flow rate at 25-35m³/hour and pumping lift is around 32 meters of water.
Specially designed Explosion-proof Separating Cabinet, with 150mm height, which divides the whole unit into two parts, the upper part is electronic unit, including main board, display and keypad box, etc. Under the Separating Cabinet, there is explosion proof area, including explosion-proof solenoid valve, flow meter, explosion-proof junction box, and explosion-proof communication box, explosion-proof pulser. The petrol pump equipment two parts are well sealed and isolated.
1. Good accuracy, heavy duty, low noise.
2. Data safe , backup power able to keep the display on at least 15 minutes. Fueling data can be saved for long time
3. Matured computer control technology, easy and safe operation.
4. Automatic check function, reset to 0 automatically every time.
5. Preset function, preset volume or amount , preset by backstage system.
6. Stable and good performance. Separate Strong power and weak power system.
7. Large LCD display, with back lighting for night viewing
8. Strict processing and quality control, stable, liable and strong electromagnetic compatibility
